오라즈는 생산공장의 기술경쟁력을 강화함으로써,
칫솔제조 선도기업으로 자리잡고 있습니다.

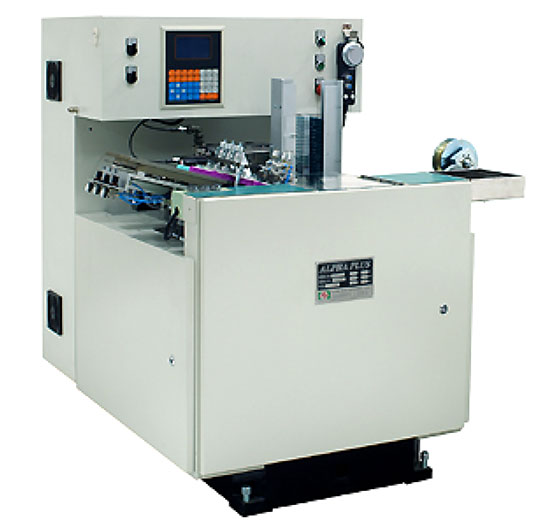

  • 일반식모기
    Model AP-868
    Capacity Max. 850 Tufts/min
    Power 3.2 kw
    Dimensions L 1250 x W 1250 x H 1305 mm
    Function
    • Good effect to run for continuous 24 hours
    • Servo control
    • Cam free
    • Toothbrush hole position, color monofilament changing and speed can be flexibly adjusted depending on nessarity
    • 50 different toothbrush hole arrangement memories
    • Convenient operation, easy maintenance
    daily capacity: 8,000 EA / 8h

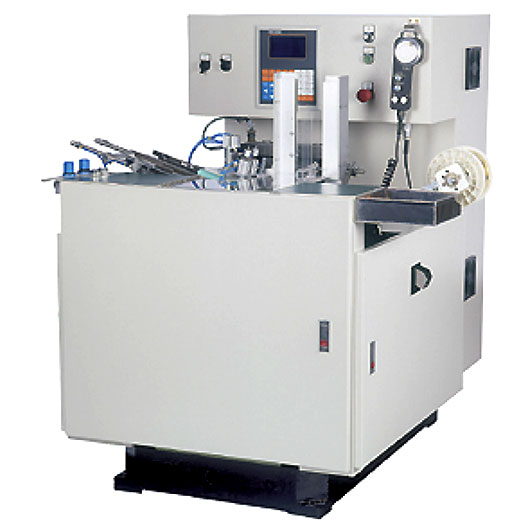

  • 패턴식모기
    Model AP-877
    Capacity Max. 850 Tufts/min
    Power 3.2 kw
    Dimensions L 1250 x W 1250 x H 1305 mm
    Function
    • Good effect to run for continuous 24 hours
    • All servo control (Including handle changing and color changing)
    • 3 color tufting
    • Cam free
    • Toothbrush hole position, color monofilament changing and speed can be flexibly adjusted depending on nessarity
    • 50 different toothbrush hole arrangement memories
    daily capacity: 6,000 EA / 8h
  • 자동식단모기
    Model AP-9N48H
    Capacity Max. 720 Tufts/min
    Power 2.1 kw
    Dimensions L 1250 x W 1250 x H 1305 mm
    Function
    • Good effect to run for continuous 24 hours
    • Servo control - Heat Transfer Unit
    • Cam free
    • Toothbrush hole position, color monofilament changing and speed can be flexibly adjusted
    • 50 different toothbrush hole arrangement memories
    • Convenient operation, easy maintenance
    daily capacity: 8,000 EA / 8h

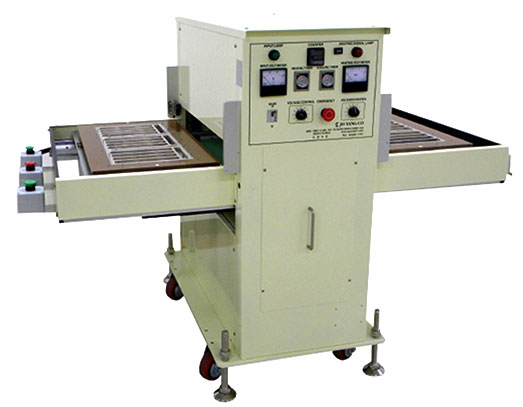

  • 수동포장기
    Model JY-S7040A
    Power supply 220V 60Hz
    Internal air pressure 5~6kg/mm
    Dimensions W×L×H(1800×1000×1220)
    Function
    • Slide type semiautomatic blister packing machine
    • Increase worker's safety and efficiency by operating both buttons
    • Prevent the worker's accident by installating a light sensor
    • Card is not burnt or bent
    • Steady and clean adhesion
    • No breakdown/failure
    daily capacity: 15,000 EA / 8h

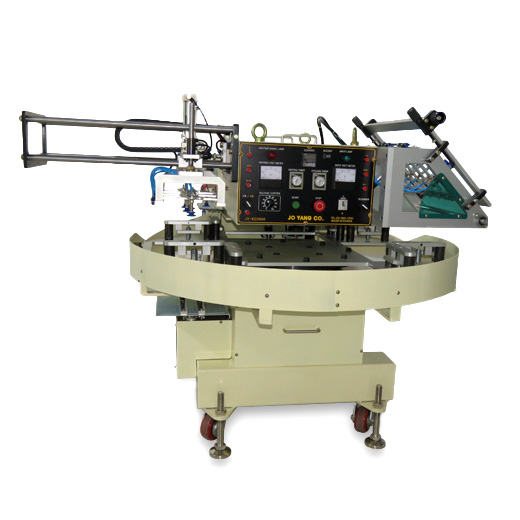

  • 회전식 반자동 포장기
    Model JY-RC5000
    Capacity 220V 60Hz
    Power 2.5KVA
    Internal air
    Pressure    		 5~6kg/mm
    Dimensions W X L X H (1460 X 1200 X 1000)
    Bonding area W X L (300 X 450)
    Machine
    weight    		 640kg
    Number of
    operators    		 1 person(or more)
    Function
    • Maximum production efficiency with automatic rotation
    • Convenience and productivity improvement due to
    • No burning or bending on the adhesive part
    • Adhesive part is firm and clean
    • No mechanical breakdown / Failure
    daily capacity: 16,000/8h(when 4 pieces are placed on one plate)

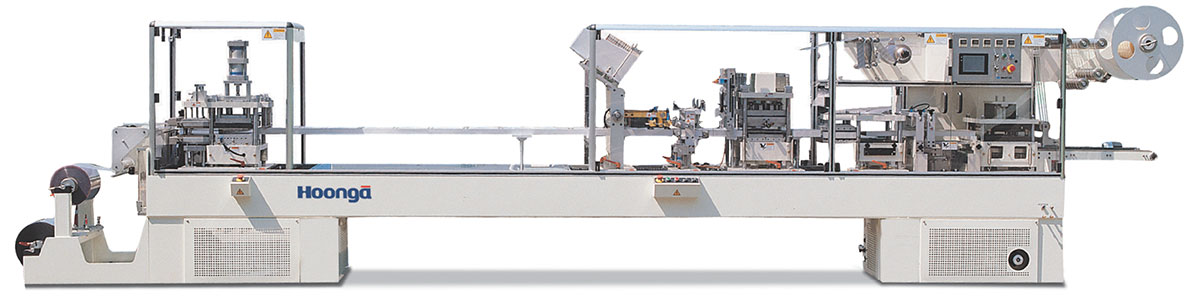

  • 자동포장기
    Model N8
    Function
    • Up to 20rpm, 160 blisters per minute(In case of Double side blister, Up to 15rpm)
    • Flexibility forming material, PET, PET-G, PVC-GAG, etc.
    • Form-Fill-Seal-Cut operation on the single bed
    • MMI control via PLC & touch panel
    • Forming and Sealing station works by Hydraulic cylinder
    • Indexing control by servo (N8 +)
    • Double punch station for reducing scrap (option)
    • High frequency sealing for Double side blister
    • Pick & place system for backer card
    • Complete safety interlock design
    • Double preheating system
    daily capacity: 15,000 EA / 8h
